700 Twister

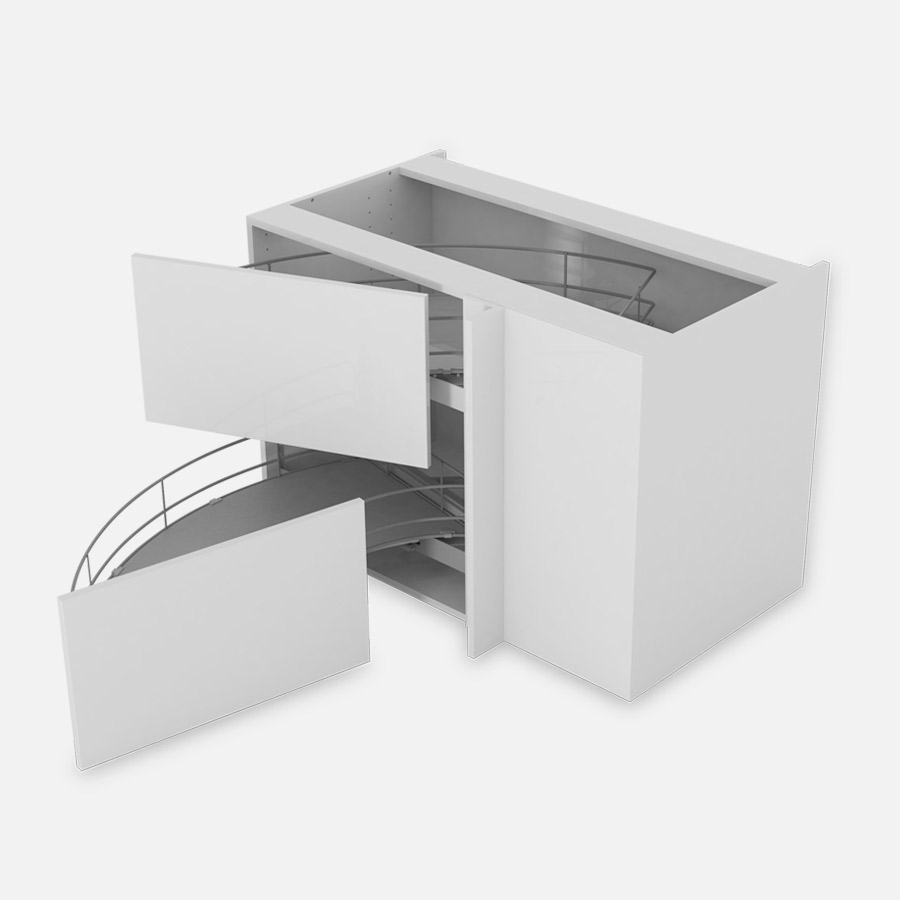

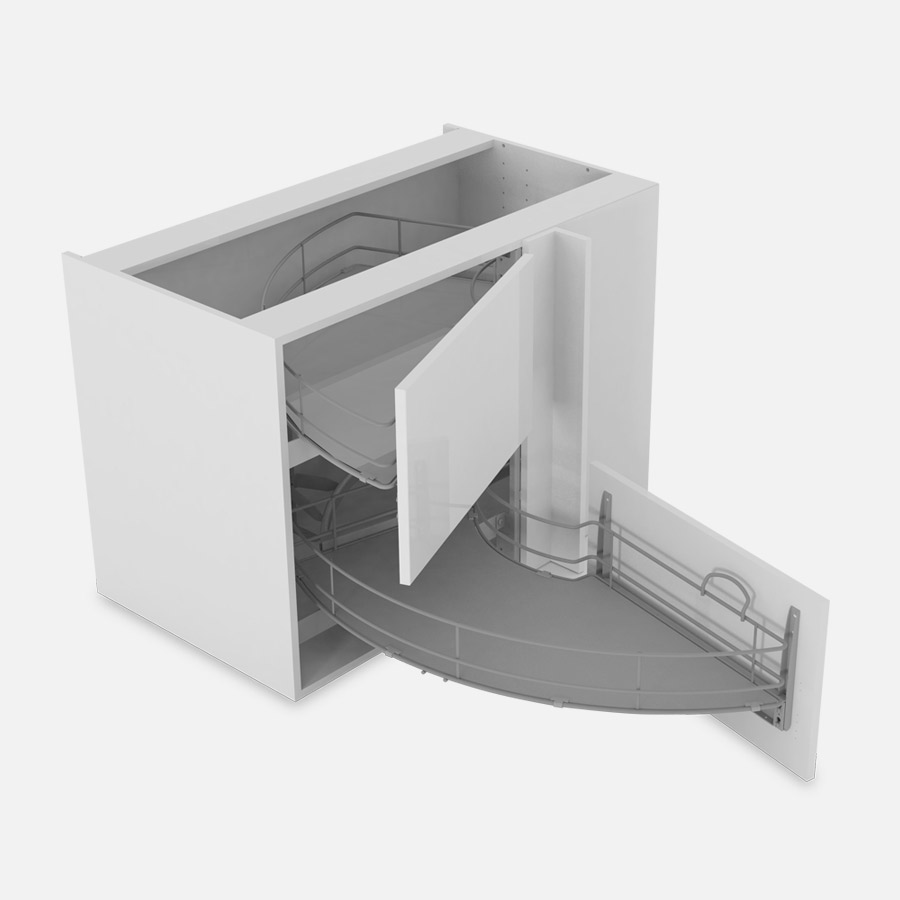

CIRCULAR PULL-OUT FITTING FOR CORNER BASE CABINETS

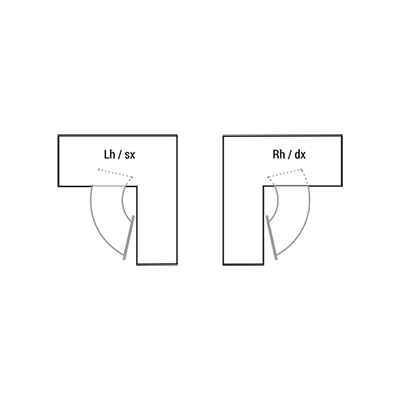

Availabe in the RH and LH version. This product's key feature is that any type of door panel can be mounted on the mechanism. This allows the kitchen's stylistic line to be maintained even in its corner cabinets. The twister can be installed on corner base cabinets with doors of 450, 500 and 600 mm. The slides load capacity is 15 Kgs. Slowmotion in closing.

Product Details

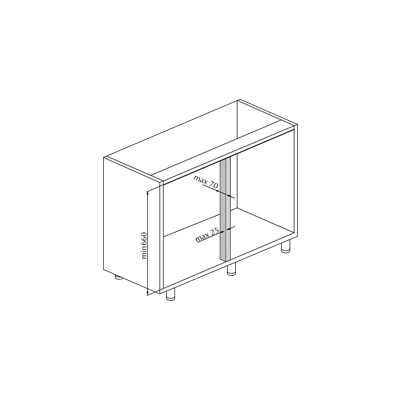

cabinet with vertical wooden cross

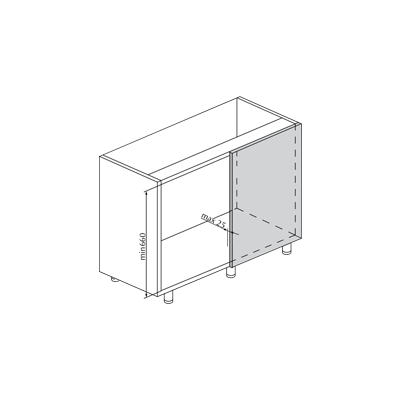

cabinet without vertical wooden cross
Article Code
Dimensions W x D x H (D/H minimum dimensions)
702-11*
mm 864 x 500 x 260
702-13*
mm 895 x 500 x 260
702-15*
mm 940 x 500 x 260

* Standard anti-slip coating on wooden bottoms

* B: Chromed wire/white wooden bottom/white frame | I: Grey painted wire/grey wooden bottom/grey frame | K: Chromed wire/grey wooden bottom/grey frame | D: Orion painted wire/orion wooden bottom/orion frame
